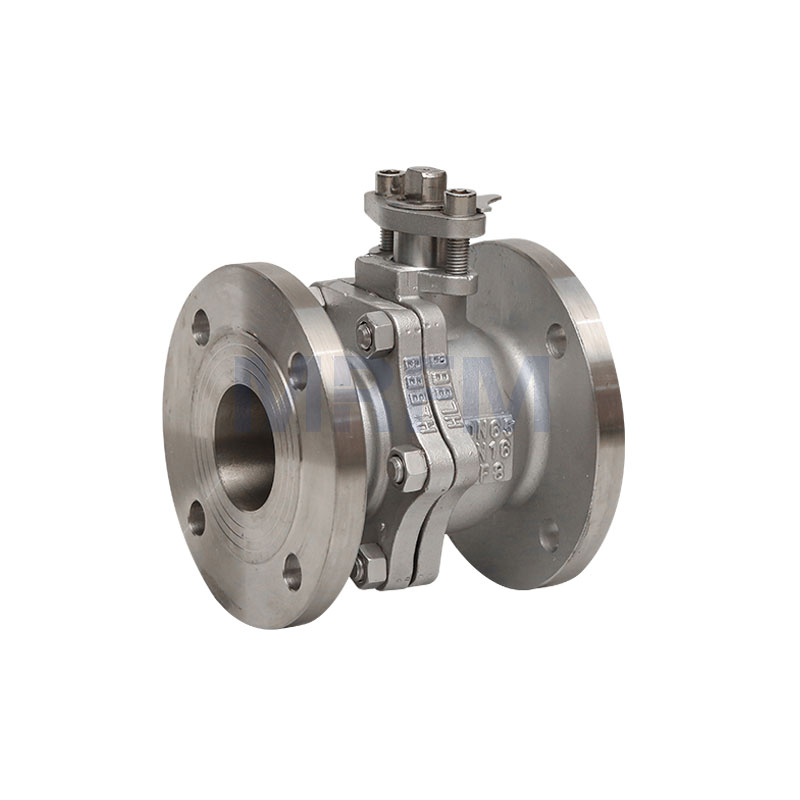

Flanged Ball Valve

A flanged ball valve is a type of industrial valve that is used to control the flow of fluids in pipelines. It consists of a ball-shaped closure mechanism with a bore through its center. The ball has a hole or port, which aligns with the pipeline when the valve is open and blocks the flow when the valve is closed. The term "flanged" refers to the flange connections at each end of the valve, which allow it to be securely bolted to the pipeline.

Here are some key features and characteristics of a flanged ball valve:

1. Body and Construction: Flanged ball valves are typically made of materials such as stainless steel, carbon steel, or other alloys, depending on the application and fluid being handled. The body of the valve is generally two-piece or three-piece construction, with flanged ends to enable connection to the pipeline.

2. Ball and Seat: The valve contains a hollow ball with a hole or port through its center. When the valve is in the open position, the hole aligns with the pipeline, allowing the fluid to flow through. The ball is supported by seats or sealing rings, which provide a tight seal when the valve is closed.

3. Actuation Options: Flanged ball valves can be manually operated or actuated using external mechanisms. Manual operation involves rotating a handle or lever to open or close the valve. Actuated valves use pneumatic, hydraulic, or electric actuators to automate the valve operation, allowing remote control or integration into automated systems.

4. Flow Control: Flanged ball valves provide excellent flow control due to the unrestricted flow path when the valve is fully open. They offer low friction loss and minimal pressure drop, making them suitable for applications that require efficient fluid flow.

5. Sealing Mechanism: The sealing mechanism in a flanged ball valve relies on the compression of seats or sealing rings against the ball. The seats are typically made of materials such as PTFE (polytetrafluoroethylene) or other resilient materials that provide a reliable seal, even at high temperatures and pressures.

6. Flange Connections: Flanged ball valves feature flange connections at each end of the valve body. These flanges have bolt holes that allow the valve to be securely bolted to the pipeline, ensuring a leak-tight connection.

7. Versatility: Flanged ball valves are versatile and can be used in a wide range of applications across industries, including oil and gas, petrochemical, water treatment, HVAC (heating, ventilation, and air conditioning), and industrial processes. They are suitable for both on/off service and throttling applications.

Flanged ball valves are popular choices for their reliability, ease of maintenance, and ability to handle high pressures and temperatures. They offer quick operation, tight shut-off, and good flow control, making them essential components in many industrial systems. Proper sizing, material selection, and installation are important considerations to ensure optimal performance and longevity of flanged ball valves.
